Laser welding of medical endoscopes
Date：2024-01-15 Source: This website
Medical endoscope is an endoscope tool for minimally invasive medical treatment of the human body, through the natural cavity of the human body, or through a small incision into the human body, the endoscope into the examination organ, can directly obtain images.

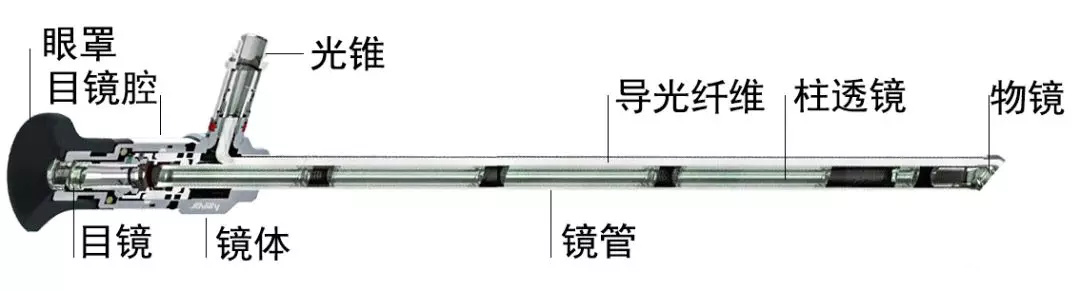

1. Endoscope structure diagram

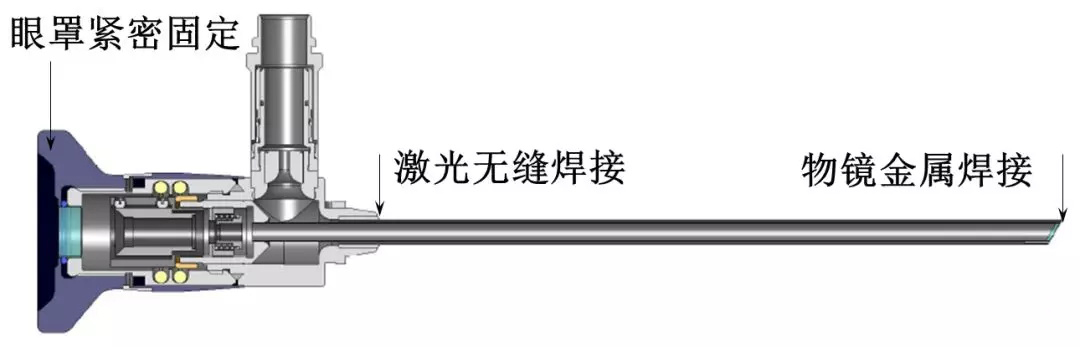

2. Endoscope laser welding position

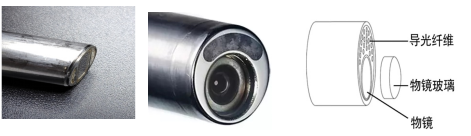

(1) Objective laser welding: mirror tube and objective laser welding, its sealing is particularly good, to ensure that the use of the process is completely without leakage, due to high-precision energy control, will not cause damage to the objective lens and fiber.

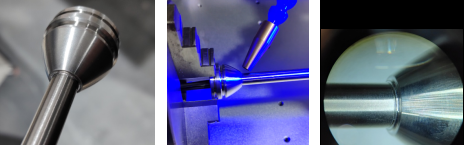

(2) External tube and mirror body: the connection of external tube and mirror body is welded seamlessly by laser, which not only ensures the tightness of the whole mirror, but also has a beautiful appearance without defects.

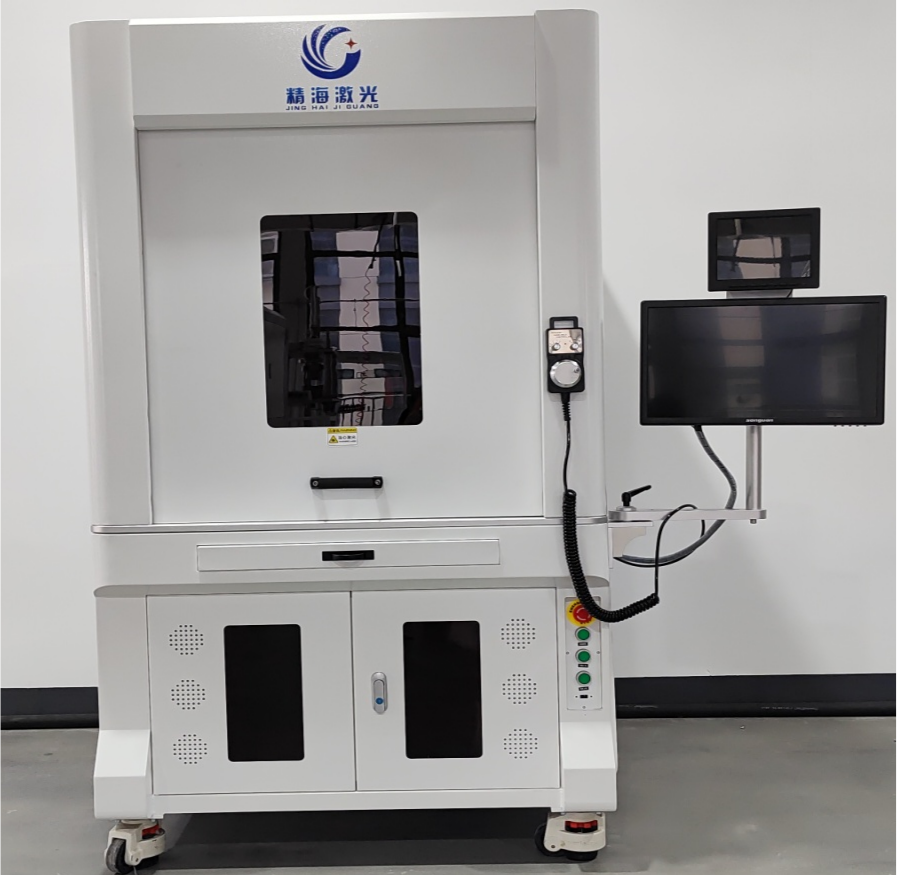

3. Introduction to welding equipment
(1) The use of imported lasers, specifically for the endoscope industry, high beam quality, energy concentration, small heat-affected area;
(2) The use of high precision transmission system, high positioning accuracy, fast response speed, rotary shaft using imported chuck, repeated positioning accuracy of ±5arc-sec, effectively ensure the harsh welding accuracy requirements of the endoscope;
(3) Beautiful welding, good weld quality, completely sealed without leakage;
(4) The equipment is well sealed, and all the materials are environmentally friendly and hygienic, which can effectively ensure the pollution prevention requirements of the endoscope's high clean production site.
Suzhou Jinghai Laser specializes in the research and development and manufacturing of laser equipment, and strives to provide our customers with the best quality products and the best service, welcome to inquire!
