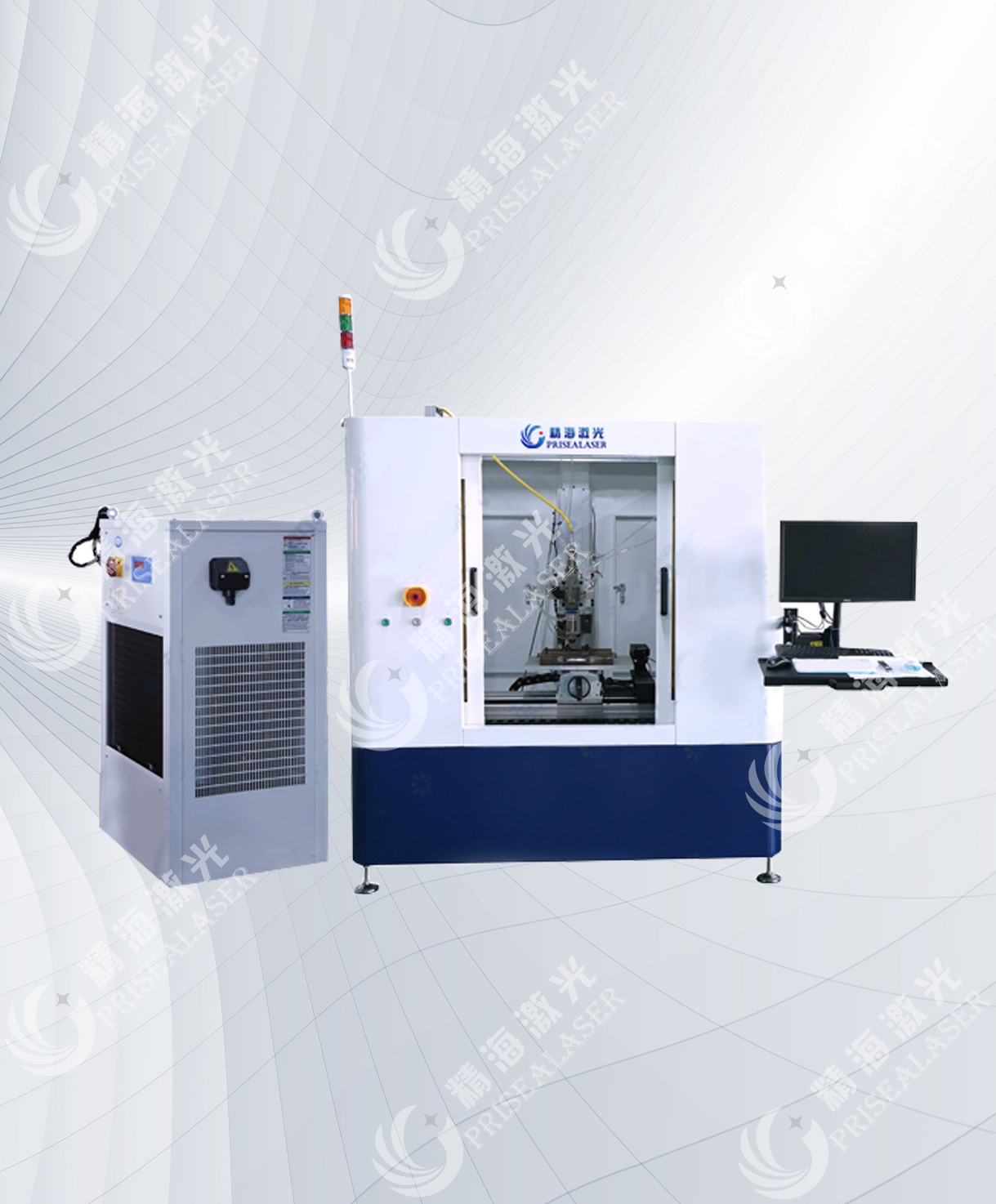

Non-ferrous metal laser welding machine
For copper, gold, silver and other non-ferrous metal welding
Product introduction
For copper, gold, silver and other non-ferrous metal welding
Structural Analysis
Technical parameters
laser | Laser light source | Semiconductor blue laser |
Laser wavelength | 450nm | |
Laser power | 50 0 - 15 0 0 W ( optional ) | |
Light mode | Continuous & Modulated | |
Beam quality | 40/60 mm * m r a d | |
Fiber diameter | 40 0-1000 μm (can be customized ) | |
Fiber length | 5 m | |
Optical fiber interface | QD | |
Power stability | ±2% | |
cooling method | water cooling | |
Whole system | X Y Z platform travel | 400mm*300mm*300mm |
positioning accuracy | ±10μm | |
Maximum welding efficiency | >200mm/s |
Detail advantage
Blue light significantly improves the process window of infrared lasers and is suitable for almost any geometry
At the same power, the wavelength of blue light is superior to all other waves
Realize splash-free welding process
High anti metal conduction welding
A galvanometer scanning system can be used
Working principle and characteristics
Blue laser welding copper and copper alloy is a more suitable choice!
Scope of application
