One tow two laser precision electric welding machine
The input cost of laser welding equipment is relatively high, and because the laser welding speed···
Product introduction
The input cost of laser welding equipment is relatively high, and because the laser welding speed is fast, the assembly and positioning of the product takes a long time, so the welding machine has more waiting time in the production process, and the actual use efficiency of the welding machine is low. In order to improve the use of the welding machine, we design the laser optical path, so that it can provide a laser beam for multiple tables, to achieve the combination of "one drag more".

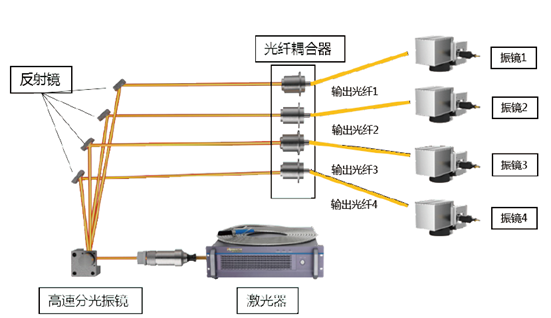

Structural Analysis

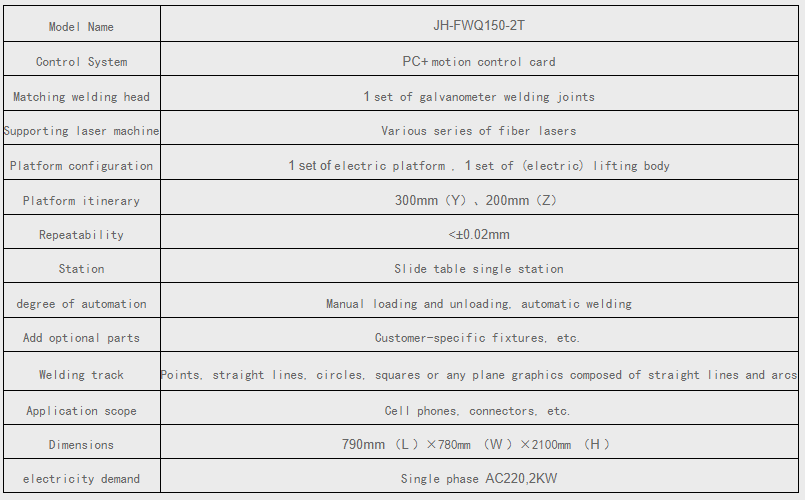

Technical parameters
The high-speed optical path switching speed is fast, compared with the traditional optical gate, the efficiency is greatly improved, the switching frequency can reach 80HZ, the traditional optical gate is 5HZ.
Two hand-held welding heads can work separately and independently, saving a laser.
The yield of multi-channel welding after high speed splitting is consistent with that of a single laser.
Detail advantage

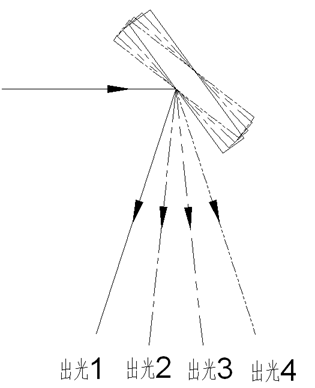

Working principle and characteristics
The production efficiency is twice that of the ordinary operation mode
The integrated optical splitting arbitration system in the laser eliminates the need for waiting time and facilitates operation
Equipped with galvanometer welding system, scanning mode in the area operation, high precision, fast speed
System standardization, modular design, stable performance
Simple structure, beautiful appearance, friendly man-machine section, cost-effective
Scope of application
