Coaxial vision laser precision spot welding machine
Coaxial vision laser precision spot welding machine is mainly used in the spot welding process of···
Product introduction
Coaxial vision laser precision spot welding machine is mainly used in the spot welding process of precision parts, mainly for the precision device welding of products in the consumer electronics industry, microelectronics industry and electrical components industry, such as internal structural parts of mobile phones, sensors, etc.
Structural Analysis

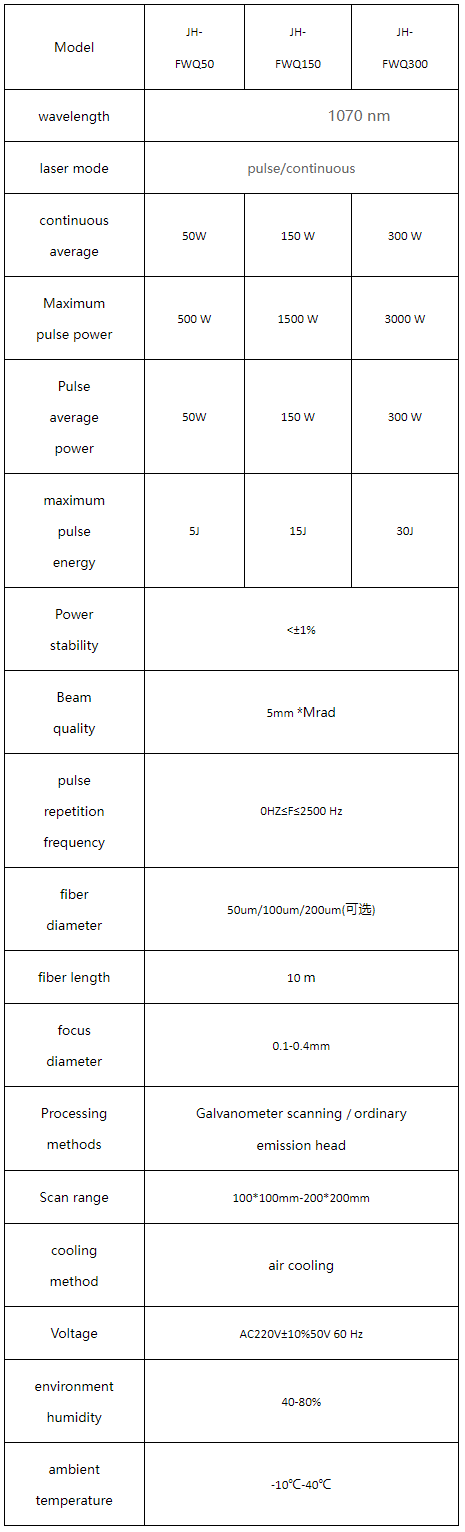

Technical parameters
Detail advantage
• The weld is firm and beautiful, the heat affected zone is small, the weld is flat and has no porosity, and the strength and toughness of the weld are at least equal to or even more than the base metal;
• Fast welding speed, compared with the traditional fixed optical path or welding head welding mode, the efficiency can be increased by more than 10 times, which has a very big advantage in the field of small plane trajectory welding
• The optical components in the system use high-quality lenses, which can be compatible with a variety of lasers;
• The system can be equipped with coaxial visual positioning system to accurately locate and guide the welding position;
• Modular design, easy and integrated; The software interface is easy to operate;
Working principle and characteristics
Advantages of coaxial machine vision systems:
1. Laser welding and CCD capture do not need to move the physical position of the hardware, which greatly improves the stability of the system and improves the welding cycle time;
2. JH's unique optical patents eliminate the color difference between visible light and laser, so as to ensure the system accuracy;
3. The system can achieve μ-level precision positioning in any position of 100*100mm welding format;
4. Independently developed pre-welding calibration and post-welding testing software;
5. According to the needs of different projects, the camera lens can be replaced to ensure that the field of view and accuracy meet the needs.
Scope of application
It is widely used in the laser welding of thin-walled precision components in the 3C consumer electronics field, such as mobile phone mechanism parts, tablet computer components, wireless headphones, smart wear, etc
