Mobile phone automatic camera module assembly and welding automatic equipment

Price range: 1.7-2 million

Power: 150W

Warranty period: 2 years

Brand: Jinghai Laser

Assemble welding equipment in the smartphone camera bracket with the camera lens. The whole line is divided into housing feeding, camera support feeding, visual inspection, laser welding, visual inspection, automatic feeding and other 7 stations, the equipment uses rotary table automation, high space utilization, convenient installation and debugging. This application is a classic application of assembly and welding of communication equipment in 3C industry.

Application Description Laser applications Functional characteristics System Description

Application description

Laser application

Core process technology:

◆ Stainless steel aluminum alloy seam welding

◆ Laser welding (spot welding process)

◆ High quality laser light source, independent research and development welding process

Application description: Stainless steel camera bracket, aluminum alloy camera turret, drawing force of more than 5KG, welding point within 0.6mm;

Welding type: spot welding, stack welding.

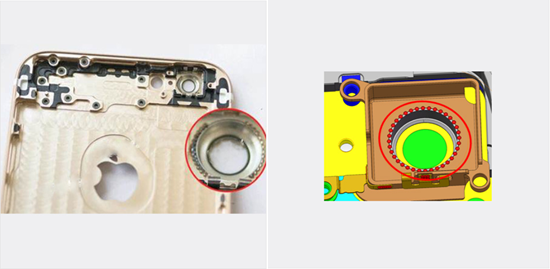

Solder joint arrangement: solder joint circular distribution;

Functional characteristics

◆ PLC networking, distributed control of automatic loading and unloading, automatic clamping and positioning of workpiece, CCD detection, fixture automatic reciprocating cycle use, the whole welding process is fully automated;

◆ CCD visual positioning system, precise and controllable welding position

◆ Repeated positioning accuracy ±0.03mm

◆ High-precision rotating disk structure, small equipment space;

◆ Robot grasping materials;

◆ Modular design, suitable for workshop production line planning;
