Supercapacitor laser welding equipment
Price range: 300,000-500,000
Power: can be selected
Warranty period: 2 years
Brand: Jinghai Laser
The main mechanical structure of the supercapacitor laser welding equipment mainly includes a three-axis module, a double-station transplanting module, a detection module, a CCD image positioning module and an auxiliary module.
Application description
The main mechanical structure of the supercapacitor laser welding equipment mainly includes a three-axis module, a double-station transplanting module, a detection module, a CCD image positioning module and an auxiliary module.
1. Three-axis module: composed of three servo platforms, each servo platform uses high-precision motor to drive the ball screw movement and linear guide rail. The servo platform drives the welding head to weld, and the positioning accuracy of each electric platform is ≤±0.02mm.
2. Detection module:
3.CCD image positioning module: CCD and collimating focusing head coaxial installation, in the welding step, CCD to achieve the welding position positioning function.
Auxiliary module
Frame: welded by square steel sheet metal, to achieve a solid and stable machine, beautiful appearance, stable operation.
Electronic control system: realize the control of the entire system.
Software system: realize the cooperation of each step of welding and laser welding.

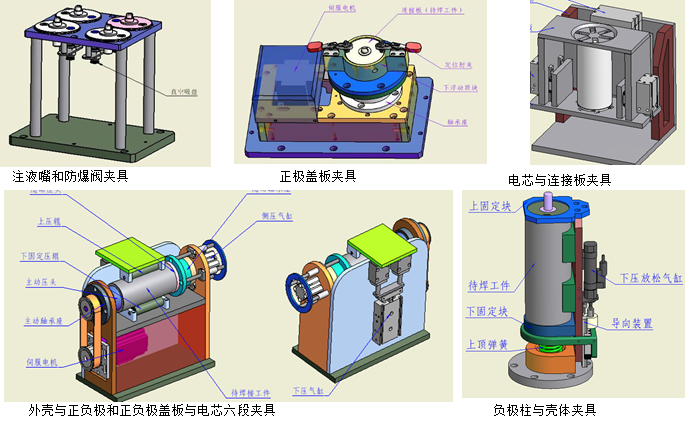

Fixture part: the whole is installed on the rotating workbench.
Protective cover: Laser protection is achieved by bending sheet metal, and observation glass is installed, and a smoking channel is installed on the protective cover.
Blow protection gas mechanism: In the case of not interfering with the fixture, add direct blow or side blow mode.
Laser application
Functional characteristics
System specification
The system consists of an IPG1000W/WY600 laser (corresponding to different welding processes) with a double station table. u Automation system includes motion platform, fixture, image positioning and ranging.
